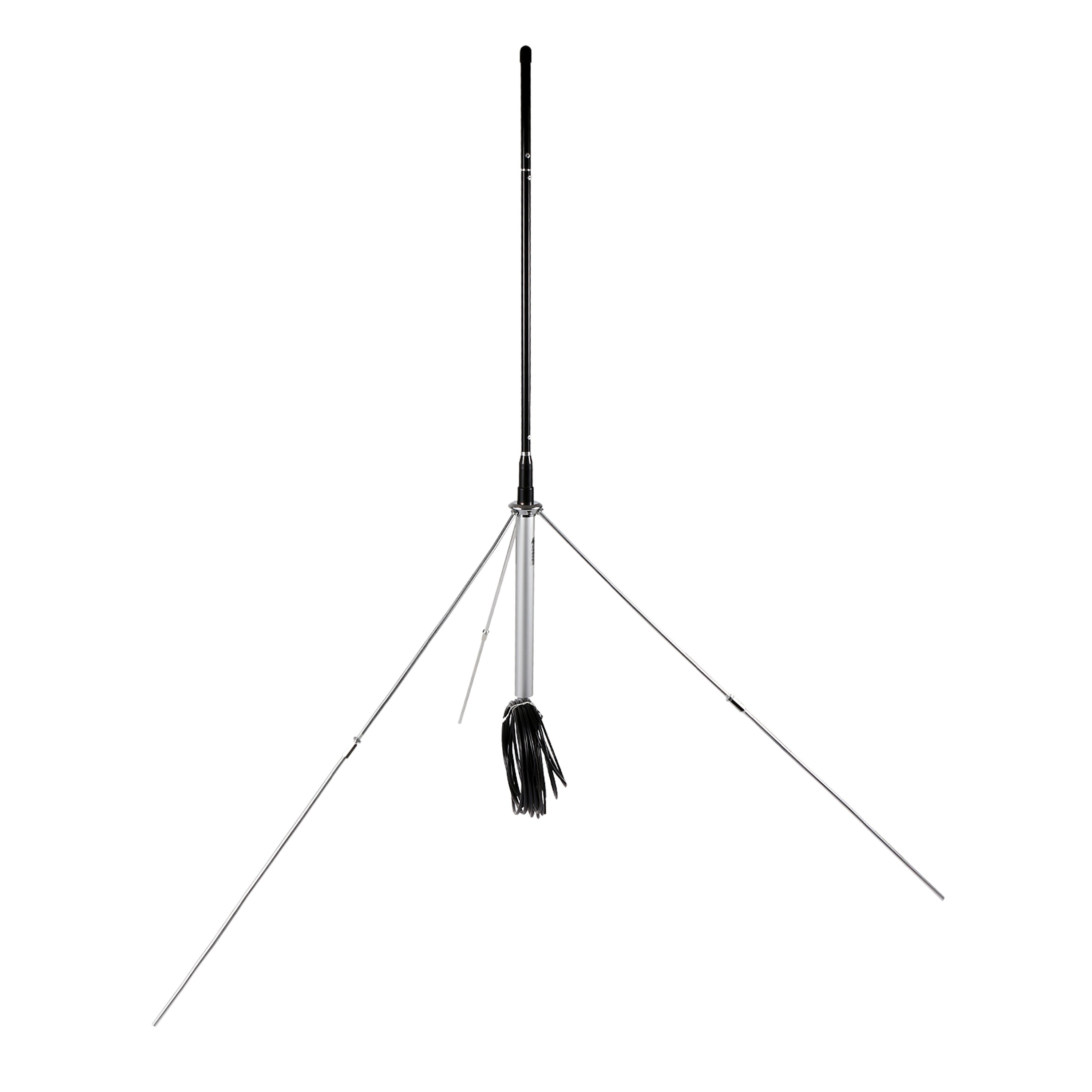

FMUSER GP100 1/4 wave Professional GP Antenna set 88-108mhz SL16-K

Overview:

Designed for FM transmitter:

The FMUSER GP100 1/4 wave GP professional antenna which can easily to adjust the accurate frequency to fix your FM broadcast transmitter.
Usually the transmission distance and frequency of the antenna that comes with the FM transmitter is limited. With this professional enhanced antenna can obtain a longer FM transmission distance; a wider frequency coverage; and more stable signal output. Provide you with high performance FM transmitter outdoor antennas.

Highlights:

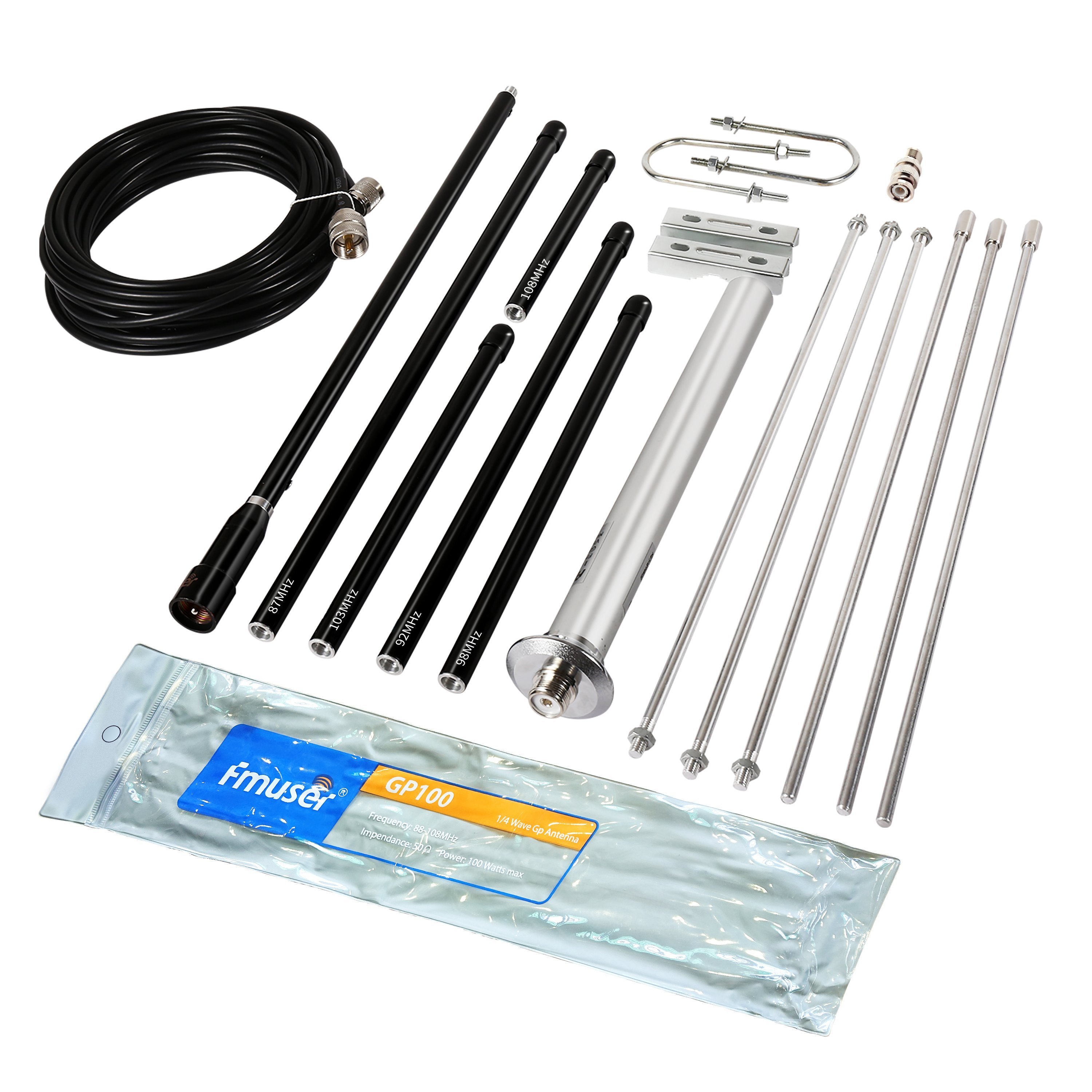

Easy to install

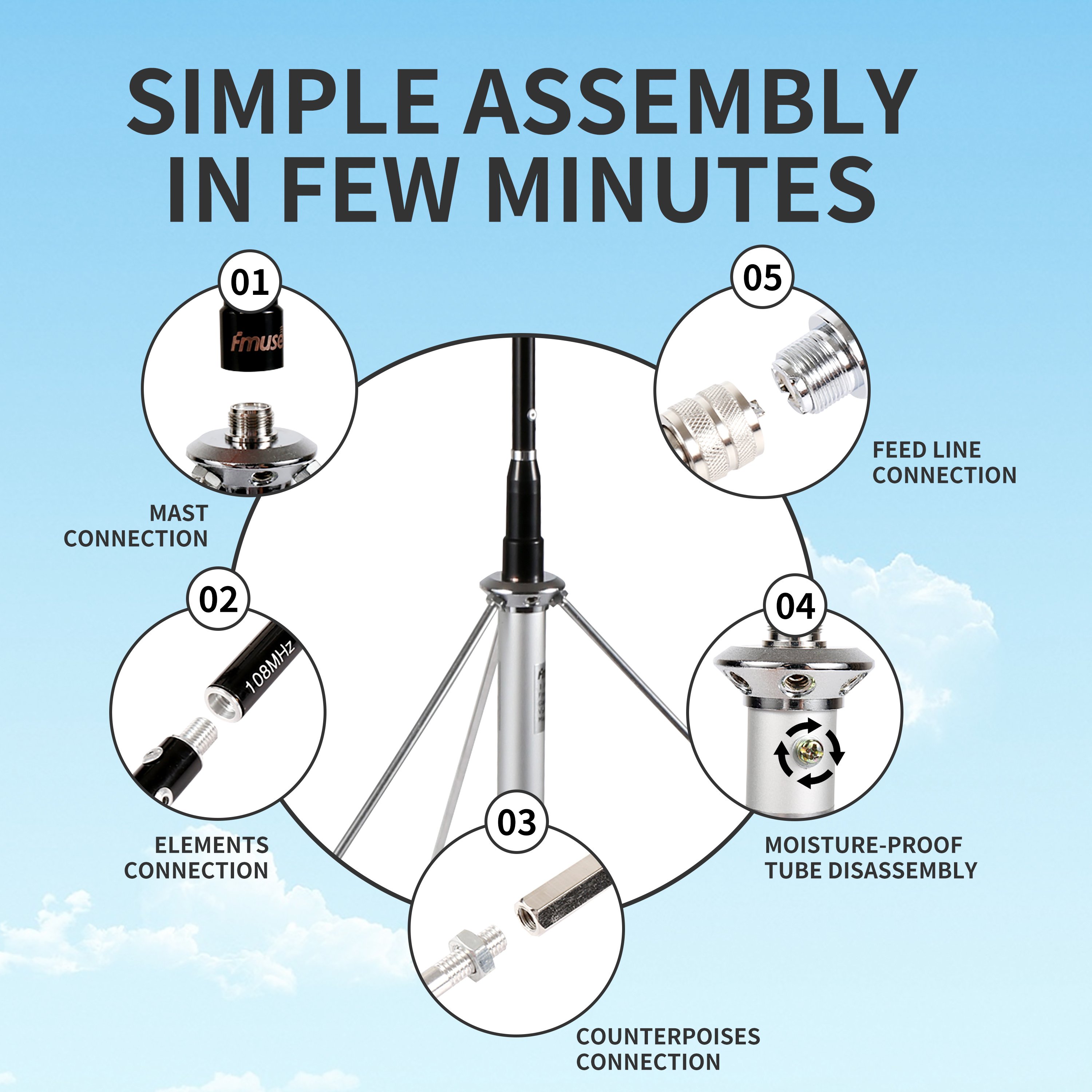

Simple assembly can be completed in a few minutes.

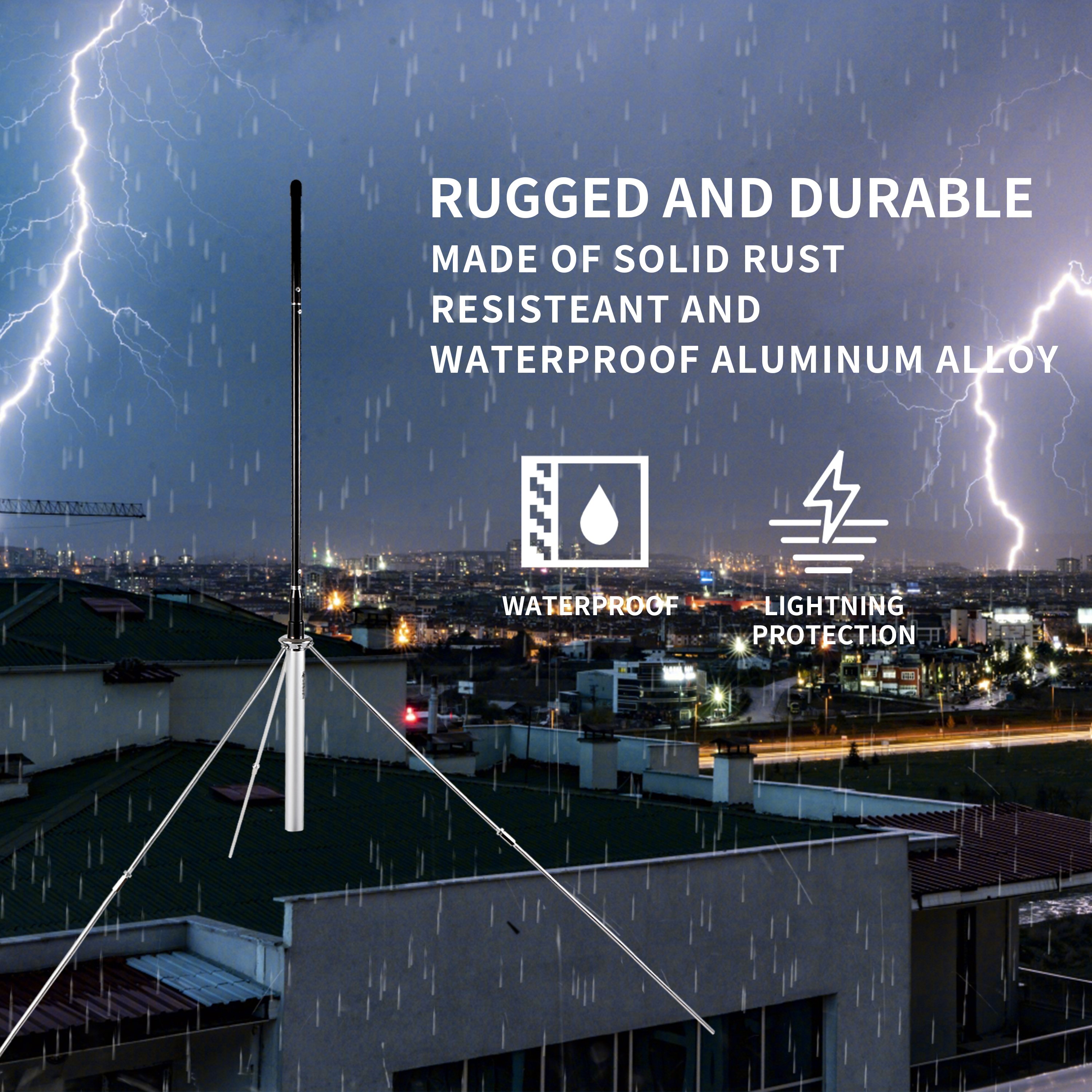

Rust Free Design

Aluminum-made alloy embrace by strong anti rust and waterproof;  There is no need to worry about the strong sun causing the antenna to oxidize and rust; and there is no need to worry that water will not flow into the antenna under thunderstorms or damage caused by thunder and lightning.

Full coverage frequency 87-108 MHz

You can choose the antenna of any frequency band you need. The distance is generally 3-5 km or more; depending on whether you are use it in dense towns or sparse towns or mountainous areas or others. The greater the transmitter power; the longer the transmission distance.

Application:

The FM Transmitter antenna for Campuses; communities; mines; rural areas; drive-in church; drive-in test; drive-in town; drive-in movie; etc.

Our FMUSER GP100 1/4 wave GP antenna it is an ideal outdoor antenna for FM broadcasting equipment.

Technical Parameters:

Maximum Power: 100W

Minimum Power: 1mW

Frequency: 88.1-108MHz

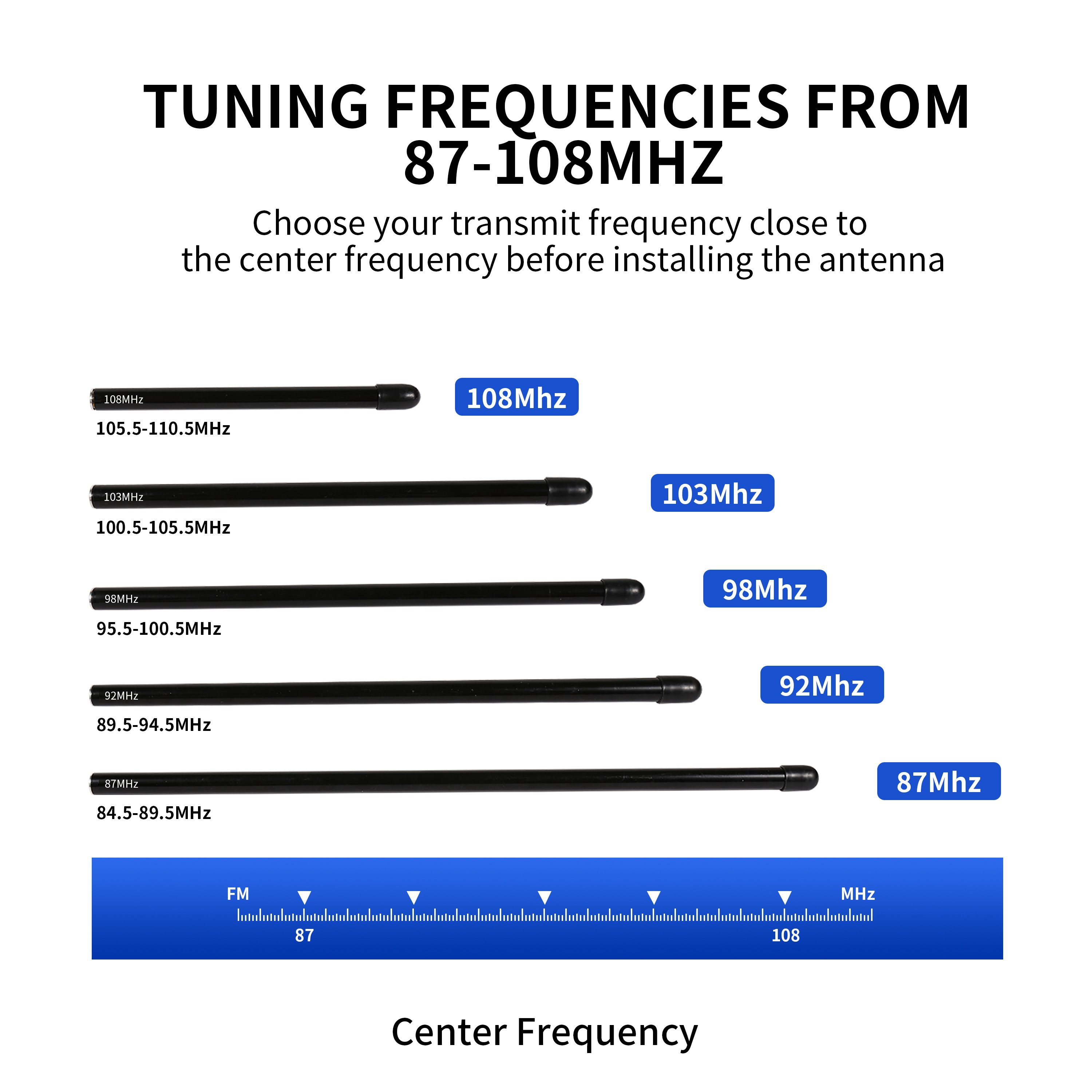

Center frequency: 87MHz 92 MHz 98 MHz 103 MHz 108 MHz

Optional Interface: TNC or BNC

Gain: Omni 3dbImpedance: 50 ohms

Bandwidth: VSWR 1.5 or less than 5MHz

Center standing wave ratio: Less than 1.1

Angle: The vertical radiation angle is 45 degrees.

Adaptation:

FM transmitter power adaptation watts
The FMUSER GP100 1/4 wave GP Professional Antenna adapts to 0.5w; 1w; 5w; 7w; 10w; 15w;  20w;  25w; 30w; 50w; 80w; 100w FM Transmitter.FM Transmitter models
05b; 5c; 7c; 15a; 25a; etc.Accessories description

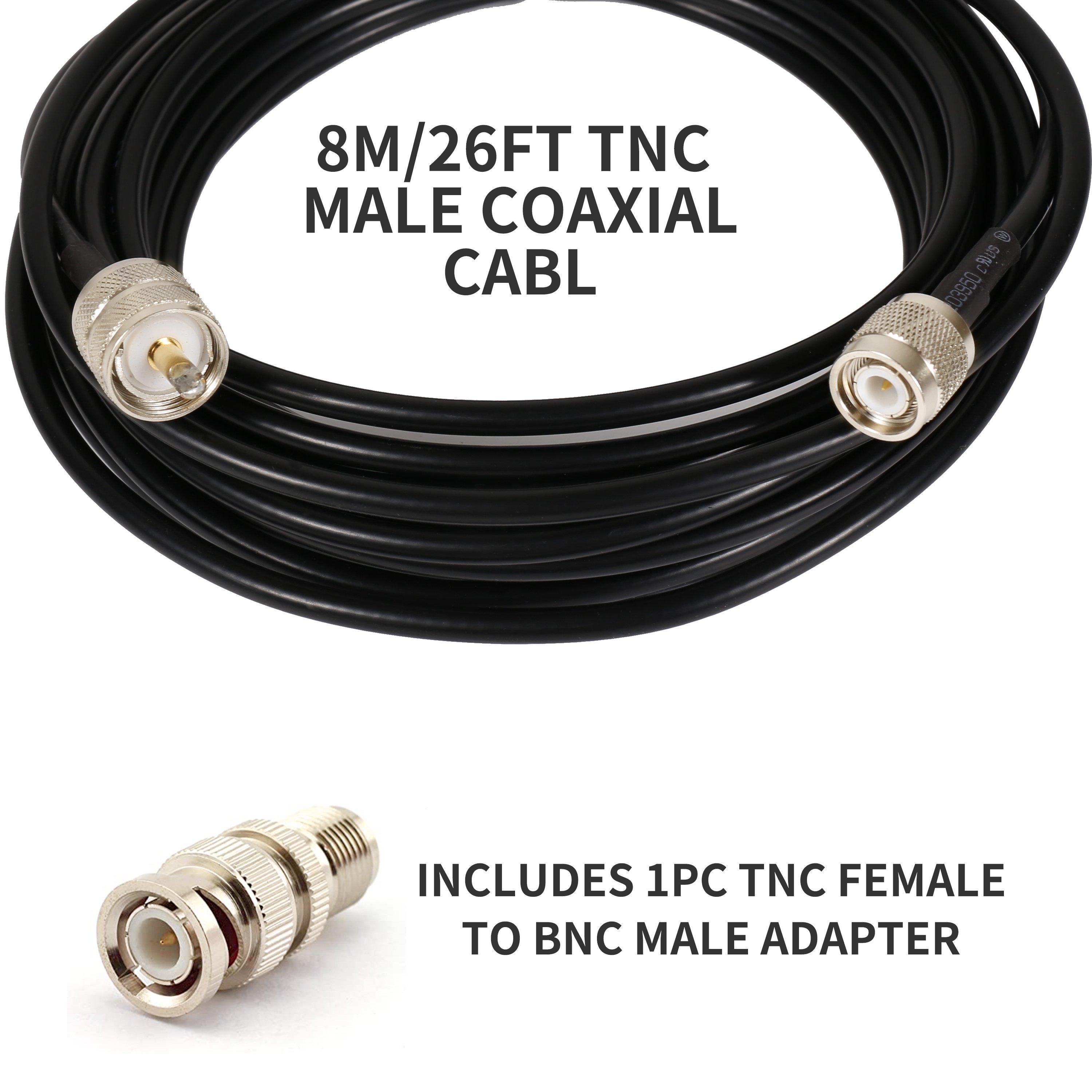

No matter what interface the transmitter can be connected; it contains a TNC male 8 meters 26 feet coaxial cable; and there is a TNC female to BNC male adapter for you to choose a suitable interface.
